Supraflo (Diaphragm Booster Pump)
Category: spare part

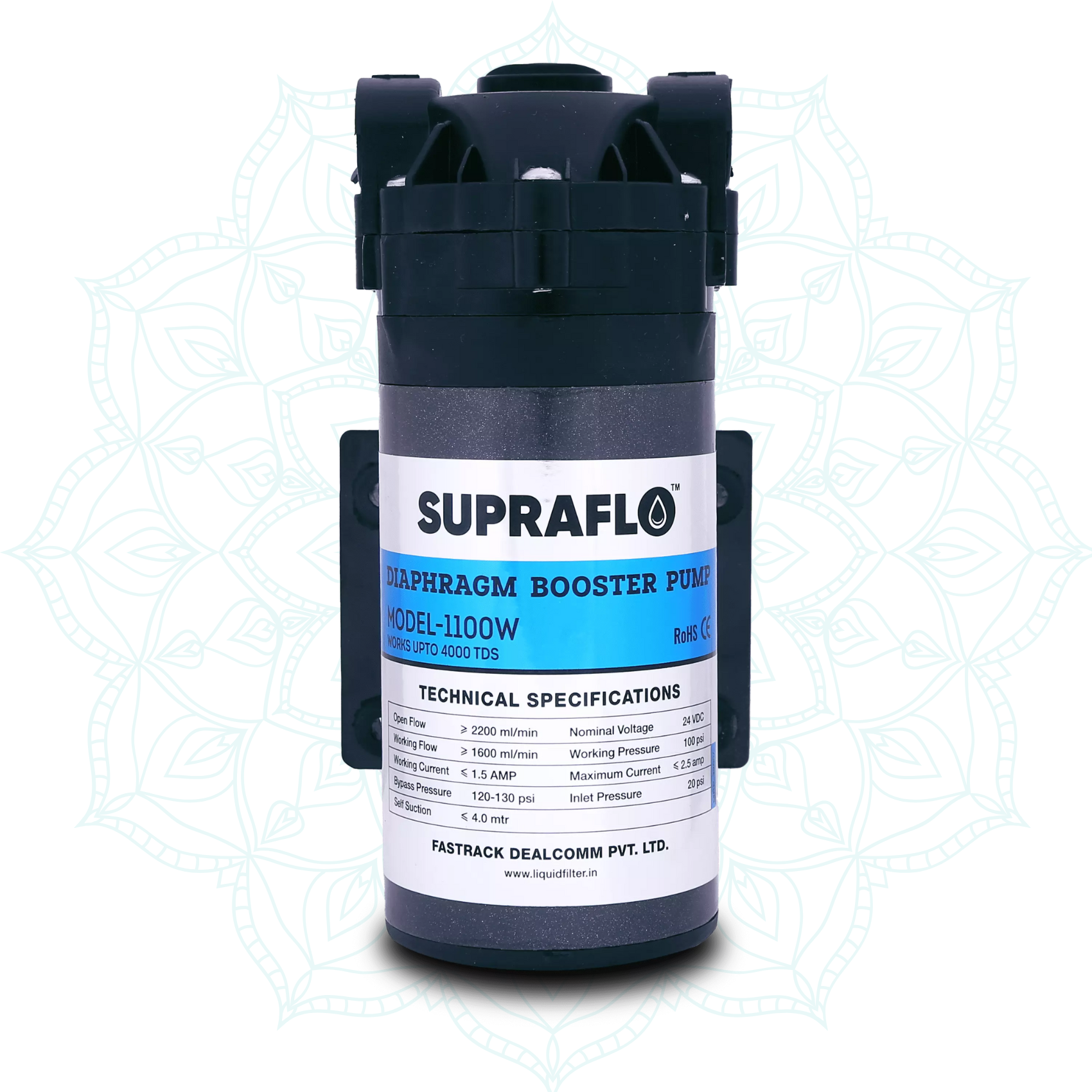

Supraflo (Diaphragm Booster Pump)

Experience powerful and efficient water purification performance with our high-capacity booster pump. Designed for consistent flow, stable pressure, and long-lasting durability, it ensures seamless purification for modern RO systems.

Book A Demo

Details

Built to deliver reliable output under varying water conditions, this pump ensures optimized flow rates, steady pressure levels, and energy-efficient operation. Its compact design, low current consumption, and strong suction capability make it ideal for both domestic and commercial water purifiers.

Features

  • High open-flow capacity for faster water output

  • Stable working flow for consistent purification performance

  • Strong pressure handling with bypass protection

  • Efficient self-suction for challenging inlet conditions

  • Low current consumption for energy savings

  • Durable 24V DC operation for long life

Add-ons

  • Inline sediment filter

  • Inline alkaline/mineral cartridge

  • RO membrane (compatible options)

  • Pre-filter housing set

  • Extra connectors and piping kit

Technical

  • Open Flow: ≥ 2000 ml/min

  • Working Flow: ≥ 1500 ml/min

  • Working Current: ≤ 1.5 AMP

  • Bypass Pressure: 120–130 psi

  • Self Suction: ≤ 4.0 m

  • Nominal Voltage: 24 VDC

  • Working Pressure: 100 psi

  • Maximum Current: ≤ 2.5 AMP

  • Inlet Pressure: 20 psi

Display

  • Compact printed label showing voltage, pressure rating, and flow specs

  • Clear directional inlet/outlet markings for easy installation

Dimensions

  • Length: 160–200 mm

  • Width: 80–100 mm

  • Height: 90–110 mm

Warranty

  • 1-year limited warranty covering manufacturing defects

  • Free service support during warranty period

  • Only iLiv-certified parts recommended for optimal performance
